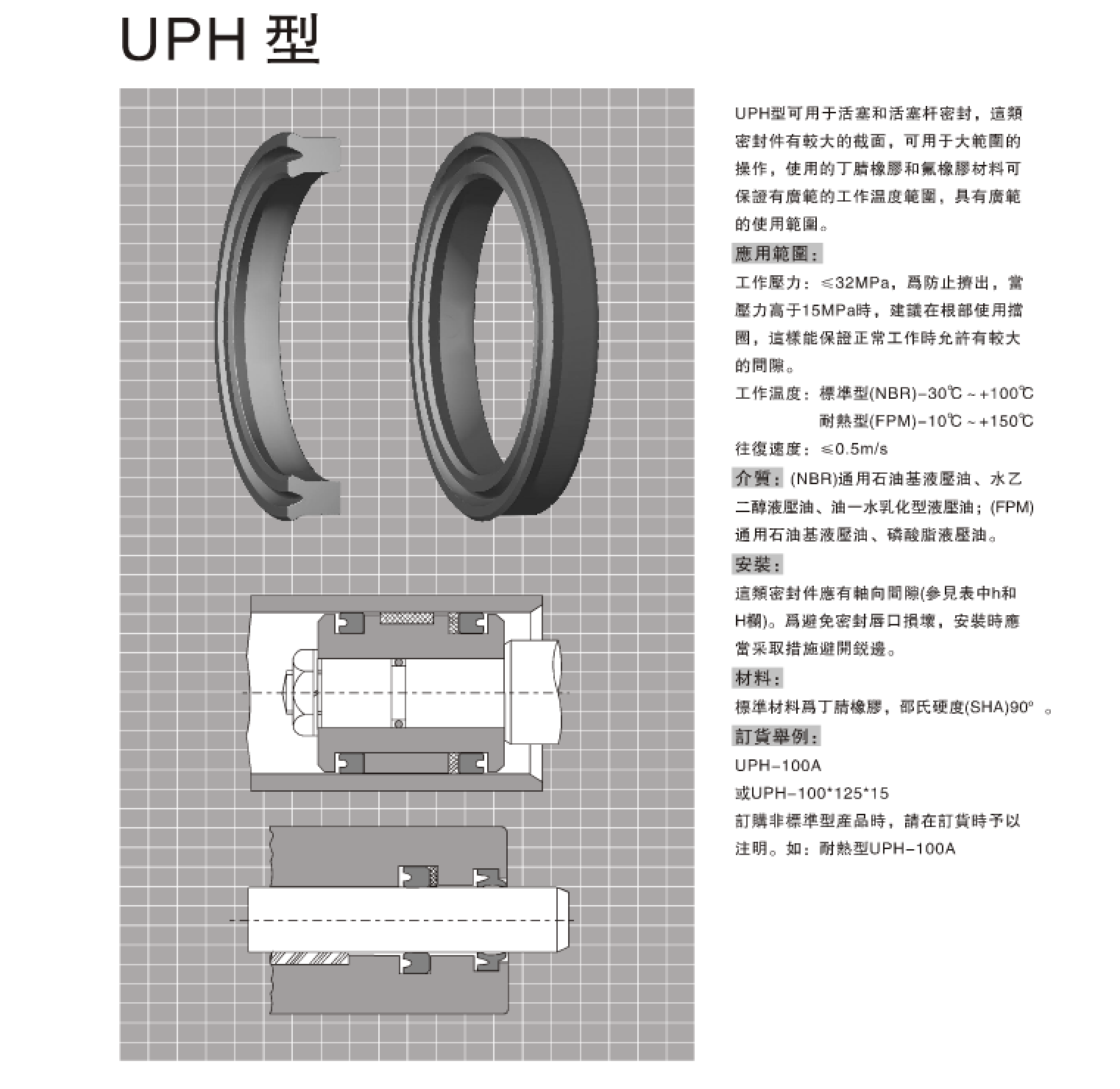

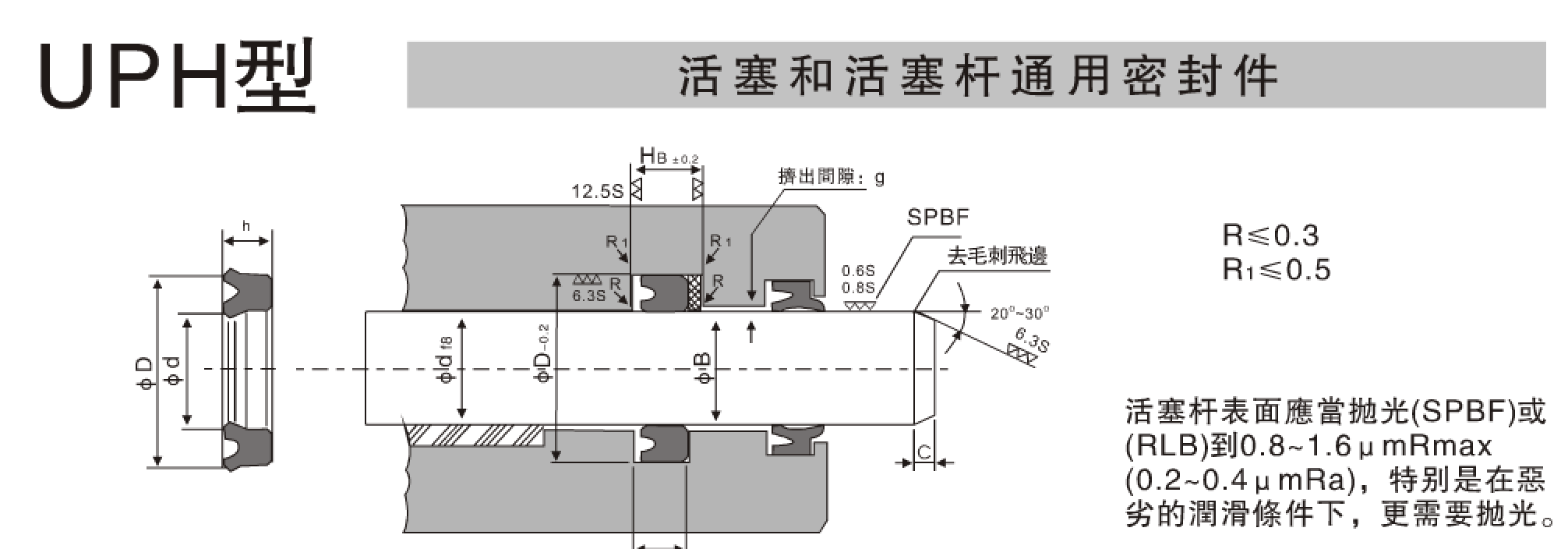

KVK/NOK品牌UPH型液压油封

名义号	φd	φD	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 单价 ¥
UPH-5	5	12	5.5	11	6.2	7.7	2.5	CU0050K0	5.5
UPH-6.3A	6.3	16.3	7.5	15.3	8.5	10.5	2.5	CU0063K0	6.8	CU3308D0	11.66
UPH-6.3	6.3	16.3	8	15.3	9	11	2.5	CU2708D0	6.3	CU0024D0	11.66
UPH-7.1A	7.1	17.1	7.5	16.1	8.5	10.5	2.5	CU0071K0	7.1	CU3309D0
UPH-7.1	7.1	17.1	8	16.1	9	11	2.5	CU2809D0	6.3	CU0030D0
UPH-8A	8	18	7.5	17	8.5	10.5	2.5	CU0080K0	8.1	CU0042D0	10.68
UPH-8	8	18	8	17	9	11	2.5	CU3011D0	6.3	CU0043D1	11.66
UPH-9A	9	19	7.5	18	8.5	10.5	2.5	CU0090K0	8.1	CU3310D0
UPH-9	9	19	8	18	9	11	2.5	CU3033D0	6.3	CU0054D0
UPH-10B	10	16	4	15	4.7	6.2	2.5	CU010BK0	6.8
UPH-10C	10	20	6	19	7	10	2.5	CU010CK0	6.8
UPH-10A	10	20	7.5	19	8.5	10.5	2.5	CU010AK0	8.1	CU0068D0	10.68
UPH-10	10	20	8	19	9	11	2.5	CU34R0DA	6.3	CU0069D1	11.66
UPH-11.2A	11.2	21.2	7.5	20.2	8.5	10.5	2.5	CU0112K0	8.1	CU3311D0
UPH-11.2	11.2	21.2	8	20.2	9	11	2.5	CU2760D3	6.8	CU0081D0
UPH-12A	12	18	6	17	7	10	2.5	CU012AK0	6.8
UPH-12B	12	20	6						6.8
UPH-12	12	22	8	21	9	11	2.5	CU1093D5	6.8	CU0093D0
UPH-12.5A	12.5	22.5	7.5	21.5	8.5	10.5	2.5	CU0125K0	8.5	CU3312D0
UPH-12.5	12.5	22.5	8	21.5	9	11	2.5	CU2R63D2	6.8	CU0102D0
UPH-14A	14	24	7.5	23	8.5	10.5	2.5	CU014AK0	8.5	CU0121D0
UPH-14	14	24	8	23	9	11	2.5	CU8065D2	6.8	CU0122D0	11.66
UPH-15B	15	25	6	24	7	9	2.5	CU015BK0	6.8
UPH-15	15	25	8	24	9	11	2.5	CU2810D2	6.8	CU0135D0	11.66
UPH-15A	15	28	10	27	11	13	2.5	CU015AK0	8.5	CU0137D0
UPH-16C	16	20	4	19	4.7	6.2	2.5	CU016CK0	6.3
UPH-16A	16	26	7.5	25	8.5	10.5	2.5	CU016AK0	8.5	CU0156D0
UPH-16	16	26	8	25	9	11	2.5	CU302RD2	6.8	CU0157D1	11.66
UPH-16B	16	32	10	31	11	13	2.5	CU016BK0	8.5	CU0161D0
UPH-18C	18	25	6.5						6.8
UPH-18	18	28	8	27	9	11	2.5	CU3R20D3	6.8	CU0182D0	11.66
UPH-18A	18	31	10	30	11	13	3.5	CU018AK0	8.8	CU0186D0
UPH-18B	18	33	10	32	11	13	3.5	CU018BK0	8.8	CU2196D0
UPH-18.5	18.5	31.5	10	30.5	11	13	3.5	CU0315K0	9	CU3313D0
UPH-20	20	27	4						7.3
UPH-20	20	30	8	29	9	11	3.5	CU5R34D2	7.3	CU0215D1	11.66
UPH-20B	20	33	10	32	11	13	3.5	CU020AK0	9.1	CU0221D0	10.68
UPH-20A	20	35	10	34	11	13	3.5	CU020BK0	9.1	CU0224D0	11.66

名羲号	φd	φD	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 单价 ¥
UPH-20C	20	40	10	39	11	13	3.5	CU020CK0	9.5
UPH-21.5	21.5	31.5	8	30.5	9	11	3.5	CU0215K0	9.5	CU0239D0
UPH-22B	22	32	6.5	31	7.5	9.5	3.5	CU022BKO	9.5
UPH-22	22	32	8	31	9	11	3.5	CU0220K0	9.5
UPH-22A	22	35	10	34	11	13	3.5	CUD22AKQ	9.5	CU0249D0	10.68
UPH-22.4	22.4	32.4	8	31.4	9	11	3.5	CU2632D0	7.3	CU0263D0	11.66
UPH-22.4A	22.4	35.4	10	34.4	11	13	3.5	CU0224K0	9.5	CU0265D1
UPH-25D	25	35	7.3	34	8.3	10.3	3.5	CU025DKO	10.5
UPH-25	25	35	8	34	9	11	3.5	CU3618D3	7.3	CU0282D2	11.66
UPH-25A	25	38	10	37	11	13	3.5	CUD25AK0	10.5	CU0288D0	10.68
UPH-25B	25	40	10	39	11	13	3.5	CU025BK0	10.5	CU0292D0	12.46
UPH-25C	25	45	12	44	13	15	3.5	CU025CKO	11.5	CU0301D0	13.44
UPH-25.5	25.5	35.5	8	34.5	9	12	3.5	CU0255K0	11.5	CU0309D0
UPH-27	27	40	10	39	11	14	3.5	CU0270K0	11.5	CU2347D0	11.16
UPH-28C	28	38	8	37	9	12	3.5	CU028CK0	9.8
UPH-28	28	43	10	42	11	14	3.5	CU2533D0	9.8	CU0340D0	13.44
UPH-28A	28	40	10	39	11	14	3.5	CU028AK0	11.5	CU0330D2	12.48
UPH-28B	28	41	10	40	11	14	3.5	CU028BK0	11.8	CU0335D0	11.16
UPH-300	30	40	6.7	39	7.7	9.7	3.5	CU030CK0	11
UPH-30B	30	40	日	39	9	12	3.5	CUD30BK0	11
UPH-30A	30	43	10	42	11	14	3.5	CU030AK0	11.8	CU0364D0	11.8
UPH-30	30	45	10	44	11	14	3.5	CU2K3D10	9.8	CU0368D2	13.44
UPH-31.5A	31.5	44.5	10	43.5	11	14	3.5	CU0315K0	11.8	CU038500
UPH-31.5	31.5	48.5	10	45.5	11	14	3.5	CU30RD2A	9.8	CU0387D1	14.72
UPH-32C	32	45	10	44	11	14	3.5	CU032CK0	12	CU2451D0	13.44
UPH-32B	32	46	10	45	11	14	3.5	CU032BK0	12	CU0403D0	14.72
UPH-32	32	47	10	46	11	14	3.5	CU0320K0	10.3
UPH-32A	32	48	10	47	11	14	3.5	CU032AKO	13	CU0404D0	14.72
UPH-34	34	50	12	49	13	16	3.5	CU0340K0	13.5	CU0408D0
UPH-35	35	50	10	49	11	14	4	CU0318D0	10.5	CU0437D4	14.72
UPH-35A	35	50	12	49	13	16	4	CU034AK0	13.5	CU0438D0	13.26
UPH-35B	35	51	12	50	13	16	4	CU035BK0	13.5	CU0441D0	15.68
UPH-35.5	35.5	50.5	10	49.5	11	14	4	CU3065D0	10.5	CU0456D2	15.68
UPH-35.5A	35.5	51.5	12	50.5	13	16	4	CU0355KD	13.5	CU0458D0	14.24
UPH-38B	38	50	7	49	B	9.5	4	CU038BKO	14
UPH-38A	38	52	10	51	11	14	4	CU03BAK0	14	CU0470D1	15.68
UPH-38	38	53	10	52	11	14	4	CU0380K0	14
UPH-40	40	55	10	54	11	14	4	CU3086RD	14	CU0505D3	15.68
UPH-40D	40	55	10.5	54	11.5	14.5	4	CU040DK0	18.9
UPH-40B	40	56	10	55	11	14	4	CU040BKO	18.9	CU0508D0	16.84
UPH-40C	40	56	12	55	13	16	4	CU040CK0	18.9	CU0509D0	15.2
UPH-40A	40	60	12	59	13	16	4	CU040AK0	19.5	CU0514D0	16.84
UPH-41	41	56	10	55	11	14	4	CU0410KD	18.9	CU0523D0
UPH-42	42	61	7.5	50	B.5	11.5	4	CU0420KD	18.9
UPH-45E	45	53	7	52	8	11	4	CU045EKO	16
UPH-45D	45	53	10	52	11	14	4	CU045DK0	16
UPH-45C	45	60	7.5	59	8.5	11.5	4	CU045CK0	18.9
UPH-45	45	60	10	59	11	14	4	CU2016D0	16	CU0577D5	16.84
UPH-45A	45	60	12	59	13	16	4	CU045AKO	18.9	CU0578D0	16.84
UPH-45B	45	61	12	60	13	16	4	CU045BK0	18.9	cU0580D0	16.34

名羲壁	φd	中D	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 单价¥
UPH-45F	45	63	10	62	11	14	4	CU045FK0	18.9
UPH-45G	45	65	12						25
UPH-47	47	63	12	62	13	16	4	CU0470K0	18.9	cu0591D0
UPH-4BA	48	60	6	59	7	9	4	CU04BAK0	16
UPH-48	48	63	10	62	11	14	4	CU10RDQA	16	CU060101	18.44
UPH-49	49	60	7.5	59	8.5	11.5	4	CU0490K0	30
UPH-50E	50	55	10	54	11	13	4	CU050EK0	15
UPH-50F	50	55	12	54	13	15	4	CU050FK0	16
UPH-50D	50	63	8	62	9	12	4	CU050DK0	16
UPH-50	50	65	10	64	11	14	4	CU1036D5	16	CU063102	18.44
UPH-50A	50	66	12	65	13	16	4	CU050AKO	18.9	CU0635D0	16.34
UPH-50C	50	70	10	69	11	14	4	CU050CK0	19.5
UPH-50B	50	70	12	69	13	16	4	CU050BK0	19.5	CU0639D3	19.6
UPH-51	51	71	12	70	13	16	4	CU0510KD	20.5	CU066900	20.56
UPH-52	52	65	8	64	8	12	4	CU0520K0	21.5
UPH-53A	53	69	12	6B	13	16	4	CU053AK0	21.5	CU3317D0
UPH-53	53	73	12	72	13	16	4	CU8026D3	21	CU0683D0	20.56
UPH-55G	55	64	5	63	5.7	7.2	4	CU055GKD	20
UPH-55E	55	65	10	64	11	13	4	CUD55EK0	19
UPH-55F	55	65	12	64	13	15	4	CU055FK0	20
UPH-55D	55	70	9	69	10	13	4	CU055DK0	24.5
UPH-55A	55	71	12	70	13	16	4	CU055AKO	24.5	CU0704D1	18.62
UPH-55	55	75	12	74	13	16	4	CU5806D2	22.5	CU0708D2	20.56
UPH-55C	55	80	12	79	13	16	4	CU055CKO	27.5
UPH-55B	55	80	15	79	16	19	4	CU055BK0	27.5	CU0712D0
UPH-56A	56	72	12	71	13	16	4	CU056AK0	26.5	CU0727D0	20.56
UPH-56	56	76	12	75	13	16	4	CU0615D3	22.5	CU0728D1	22.34
UPH-6DC	60	68	6	67	7	9	4	CU080CK0	27
UPH-60B	60	75	9	74	10	13	4	CU60BK0	27
UPH-6DA	60	76	12	75	13	16	4	CU060AKQ	27	CU0757D1	20.24
UPH-60	60	80	12	79	13	16	4	CU3218D0	25	CU0761D1	22.34
UPH-62	62	75	7.5	74	8.5	10.5	4	CU60DK0	28
UPH-63B	63	78	10	77	11	14	4	CU063BK0	28
UPH-63A	63	79	12	7B	13	16	4	CUD63AKQ	28	CU0791D0	22.34
UPH-63	63	83	12	82	13	16	4	CU5016D2	28	CU0793D1	24.12
UPH-64	64	80	12	79	13	16	4	CU0640K0	30	CU2123D1	20.24
UPH-650	65	80	9	79	10	13	5	CUD65CK0	30
UPH-65B	65	80	12	79	13	16	5	CUD65BK0	30
UPH-65A	65	81	12	80	13	16	5	CUD65AKQ	30	CU3318D0	24.12
UPH-65	65	85	12	84	13	16	5	CU2750R0	30	CU0819D1	24.12
UPH-67	67	87	12	86	13	16	5	CU3618D3	30	cU0831D0	25.42
UPH-67A	67	87	15	86	16	19	5	CUD67AKO	32.5	CU3319D0
UPH-6BB	68	78	12	77	13	16	5	CUD6BBK0	30
UPH-6BA	68	80	6	79	7	10	5	CUD6BAKQ	24
UPH-68	68	80	9	79	10	13	5	CU0680KD	30
UPH-69	69	90	10	89	11	14	5	CU0690K0	30
UPH-70E	70	80	12	79	13	16	5	CU070EKO	26
UPH-70B	70	85	9	84	10	13	5	CUD70BK0	30
UPH-70D	70	85	10	84	11	14	5	CU070DK0	30
UPH-70C	70	85	12	84	13	16	5	CU070CKO	30

名义号	φd	φD	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 单价 ¥
UPH-70	70	90	12	89	13	18	5	CU325RD2	30	cu0862D1	25.42
UPH-70A	70	90	15	89	16	19	5	CU070AKO	34.5	CU086400	22.82
UPH-71	71	91	12	90	13	16	5	CU3061D5	31	CU0884D1	27.18
UPH-71A	71	91	15	90	16	19	5	CU071AKO	34.7	cU0885D0	27.18
UPH-75C	75	88	10	87	11	14	5	CU075CKO	31.5
UPH-75B	75	90	9	89	10	13	5	CU075BK0	31.5
UPH-75	75	95	12	94	13	16	5	CU242RD2	31.5	CU091001	27.18
UPH-75A	75	95	15	94	16	19	5	CU075AK0	36.4	CU0911D1	24.44
UPH-750	75	100	12.5	99	13.5	16.5	5	CU075DK0	35
UPH-75E	75	100	16	99	17	20	5	CU075EKO	35
UPH-80C	80	95	9	94	10	13	5	CU0B0CK0	31.5
UPH-80B	80	95	12	94	13	16	5	CU080BK0	31.5
UPH-80	80	100	12	99	13	16	5	CU2362D2	31.5	CU0948D1	28.64
UPH-80A	80	100	15	99	16	19	5	CU080AKO	38.5	cu0949D2	25.72
UPH-82	82	102	13	101	14	17	5	cU0820K0	35
UPH-85B	85	100	9	99	10	13	5	CUD85BKO	35
UPH-85	85	105	12	104	13	16	5	CU2361D2	35	CU0989D1	30.92
UPH-85A	85	105	15	104	16	19	5	CU085AKO	39.2	CU0990D0	27.84
UPH-90H	90	100	5						22.5
UPH-90G	90	100	12	99	13	16	5	cU090GK0	45	cU103003
UPH-90F	90	102	14	101	15	18	5	CU090FK0	45
UPH-90	90	110	12	109	13	16	5	CU1539D3	36		33
UPH-90E	90	105	12	104	13	16	5	CU090EKO	45
UPH-90C	90	110	13	109	14	17	5	CU090CKO	42
UPH-90B	90	110	15	109	16	19	5	CU090BKO	42	CU1031D0	29.78
UPH-900	90	115	13	114	14	17	5	CU090DK0	50
UPH-90A	90	120	15	118	16	19	5	CU2596D2	42
UPH-92	92	112	12	111	13	16	5	CU0920K0	45	CU1042D1
UPH-92A	92	112	15	111	16	19	5	CU092AKO	46	CU2132D1
UPH-95C	95	110	12	108	13	16	5	CU095CKO	45
UPH-95	95	115	12	114	13	18	5	CU1763D2	38	CU1056D0	35.62
UPH-95A	95	115	15	114	16	19	5	CU095AKO	48	CU1057D1	32.22
UPH-958	95	120	15	118	16	19	5	CU095BK0	48.5	CU1061D0	38.68
UPH-100D	100	110	5						25
UPH-100	100	120	12	118	13	16	5	CU1098D2	44.5	CU1089D3	38.68
UPH-100C	100	120	14	118	15	18	5	CU100CK0	47.5
UPH-100B	100	120	15	118	16	19	5	CU100BK0	47.5	CU1091D0	34.8
UPH-100A	100	125	15	123	16	19	5	CU2DKD02	47.5	CU1096D0	44.18
UPH-105	105	125	12	123	13	16	5	CU1088D2	52.0
UPH-105	105	125	15	123	16	19	5	CU108D15	52.0	CU112902	36.74
UPH-106	106	126	15	124	16	19	5	CU2016D2	53.5	CU1138D0	44.18
UPH-110B	110	125	12	123	13	16	5	CU110BK0	53.5
UPH-110A	110	130	12	128	13	16	5	CU210BD3	53.5
UPH-110	110	130	15	128	16	19	5	CU210915D	53.5	CU1165D1	44.18
UPH-112	112	132	15	130	16	19	5	CU2118D2	55	CU118200	42.24
UPH-112B	112	136	11.7	133	12.7	15.7	5	CU112BKO	57
UPH-112A	112	136	12	133	13	16	5	CU112AKO	57
UPH-115A	115	135	12	133	13	16	5	CU115AKO	56
UPH-115	115	135	15	133	16	19	5	CUC20DK2	56	CU119800	46.78
UPH-118	118	13B	15	136	16	19	5	CU80R0D5	56	CU120700	50.18

名羲鹭	φd	φD	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 售价 ¥
UPH-120	120	130	7						28
UPH-120A	120	140	12	138	13	16	5	CU120AKO	57
UPH-120	120	140	15	138	16	19	5	CU1386D2	57	CU122402	45
UPH-120B	120	140	18	138	19	22	5	CU120BK0	70
UPH-125C	125	145	11	143	12	15	6.5	CU125CKO	73.48
UPH-125A	125	145	12	143	13	16	6.5	CU125AKO	58
UPH-125	125	145	15	143	16	19	6.5	CU30R0D2	58	CU1257D0	48.06
UPH-125B	125	150	19	148	20	23	6.5	CU125BK0	73.48	CU193300	52.94
UPH-126	126	138	9	136	10	13	6.5	CU1260K0	58
UPH-127	127	140	10	138	11	14	6.5	CU1270K0	58
UPH-130B	130B	145	12	143	13	16	6.5	CU130B1K0	60
UPH-130C	130	150	12	148	13	16	6.5	CU130B0K0	60
UPH-130	130	150	15	148	16	19	6.5	CU3073D2	59	CU128402	58.92
UPH-130A	130	155	19	153	20	23	6.5	CU130AK0	75	CU332000	63.62
UPH-132	132	152	15	150	16	19	6.5	CU1320K0	75	CU1292D0	63.62
UPH-132A	132	157	19	155	20	23	6.5	CU132AKO	75	CU2703D1
UPH-135C	135	155	12						65
UPH-135	135	155	15	153	16	19	6.5	CU3601K0	61	CU130500	63.63
UPH-135A	135	160	15.7	158	17	20	6.5	CU135AKO	79	CU332200	64.74
UPH-135B	135	160	19	158	20	23	6.5	CU135BKO	82	CU1960D0	58.1
UPH-138	138	153	8.5	151	9.5	12.5	6.5	CU1380KD	82
UPH-1408	140	160	12	158	13	16	6.5	CU140BKO	61.5
UPH-140	140	160	15	158	16	19	6.5	CU5633K0	62.5	CU132701	64.74
UPH-140A	140	165	19	163	20	23	6.5	CU140AK0	80.5	CU133202	60.52
UPH-140C	140	180	30	178	/		6.5	CU140CKO	110
UPH-145	145	165	15	163	16	19	6.5	CU5432D0	62.5	CU1344D0	67.16
UPH-145A	145	175	15	173	16	19	6.5	CU1546D2	75
UPH-145B	145	170	19	168	20	23	6.5	CU145BK0	85	CU234800	64.74
UPH-150A	150	170	12	168	13	16	6.5	CU0150K0	74
UPH-150	150	170	15	168	16	19	6.5	CUK2362A	63.5	CU1363D2	70.72
UPH-150C	150	175	15	173	16	19	6.5	CU150CK0	85
UPH-150B	150	175	19	173	20	23	6.5	CU015BK0	85	CU1367D0	74.3
UPH-15DE	150	180	15	178	16	19	6.5	CU150EKO	88
UPH-153	153	17B	16	176	17	20	6.5	CU1530K0	88
UPH-155	155	180	15	178	16	19	6.5	CU1803D5	90	CU1391D2	76.54
UPH-155A	155	180	15.7	178	17	21	6.5	CU155AKO	90	CU3323D0	76.54
UPH-155B	155	180	19	178	20	24	6.5	CU155BK0	97	CU1393D0	69.6
UPH-160B	160	180	12	178	13	16	6.5	CU160BKO	99
UPH-160F	160	180	15	178	16	19	6.5	CU160FK0	99
UPH-16DC	160	180	16	178	17	20	6.5	CU160CKO	99
UPH-160	160	185	15	183	16	19	6.5	CU3016D0	97	CU1413D0	78.98
UPH-160A	160	185	19	183	20	24	6.5	CU160AK0	102	CU2349D0	71.86
UPH-160E	160	190	16	188	17	20	6.5	CU160EK0	104.5
UPH-160D	160	190	18	188	19	23	6.5	CU160DKO	110
UPH-165B	165	180	5	178	5.7	7.2	6.5	CU165BK0	77
UPH-165	165	190	15	188	16	19	6.5	CU2143D2	103	CU1431D0	83.66
UPH-165A	165	190	19	188	20	24	6.5	CU165AK0	130	CU332400	83.68
UPH-165C	165	220	41	218	/	1	6.5	CU165CK0	330
UPH-170A	170	190	12	188	13	18	6.5	CU0170K0	121
UPH-17DC	170	190	16	188	17	20	6.5	CU170CKO	110

名羲壁	φd	中D	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 罩价 ¥
UPH-170	170	195	15	193	16	19	6.5	CU8016D0	107.5	CU1448D1	88.38
UPH-170B	170	195	19	193	20	24	6.5	CU170BK0	132	CU3325D0	88.36
UPH-175	175	200	15	198	16	19	6.5	CU8028D5	115	CU1461D2	91.92
UPH-175B	175	200	15.7	198	17	21	6.5	CU175AK0	121	CU3326D0	91.92
UPH-175A	175	200	19	198	20	24	6.5	CU175BK0	135	CU1463D1	82.54
UPH-180E	180	196	18	194	19	23	6.5	CU180EK0	143
UPH-180B	180	200	15	198	16	19	6.5	CU180BKO	121
UPH-180	180	205	15	203	16	19	6.5	BU5016D0	121	CU1490D0	98.9
UPH-180C	180	205	16	203	17	20	6.5	CU180CK0	121
UPH-180A	180	205	19	203	20	24	6.5	CU18DAKQ	143	CU1492D0	89.5
UPH-180D	180	206	16	204	17	20	6.5	CU180DK0	121
UPH-185A	185	205	12	203	13	16	6.5	CU0185K0	143
UPH-185	185	210	15	208	16	19	6.5	CU5318D2	132	CU1504D0	98.9
UPH-190B	190	210	16	208	17	20	6.5	CU190BK0	137.5
UPH-190	190	215	15	213	16	19	6.5	CU5135D1	132	CU1519D0	107.94
UPH-190A	190	215	19	213	20	24	6.5	CU190AK0	148.5	CU3327D0	107.94
UPH-195	195	215	12	213	13	15	6.5	CU1950K0	137.5
UPH-199	199	224	15	222	16	19	6.5	CU5136D2	137.5	CU1532D0	115.88
UPH-199B	199	224	15.7	222	17	21	6.5	CU199AK0	148.5	CU3329D0	115.88
UPH-199A	199	224	19	222	20	24	6.5	CU199BK0	159.5	CU1535D0	115.88
UPH-200A	200	220	15	223	16	19	6.5	CU200AKO	170.5
UPH-200F	200	220	18	218	19	23	6.5	CU200FK0	176
UPH-200	200	225	15	223	16	19	6.5	CU5R0BK0	137.5	CU1547D0	115.88
UPH-200B	200	225	19	223	20	24	6.5	CU200BKO	187	CU2350D0	103.58
UPH-200D	200	226	16	224	17	20	6.5	CU200DK0	176
UPH-200E	200	228	16	226	17	20	6.5	CU20DEK0	176
UPH-200C	200	240	30	238	/	/	6.5	CU200CK0	330
UPH-200G	200	240	35	238			6.5	CU200GK0	330
UPH-205	205	230	18	228	19	23	6.5	CU3K06K0	143
UPH-205A	205	235	18	233	19	23	6.5	CU205AK0	176
UPH-210A	210	230	12	228	13	16	6.5	CUA03210	167
UPH-210	210	235	18	233	19	23	6.5	CU2100KD	145	CU1579D0	125.6
UPH-210B	210	240	18	238	19	23	6.5	CU210BK0	203.5
UPH-212	212	237	19	235	20	24	6.5	CU2120KD	185	CU1585D0	125.6
UPH-215	215	235	12	233	13	16	6.5	CU02150K0	170.5
UPH-215	215	240	19	238	17	21	6.5	CU215AKO	181.5	CU333100	127.54
UPH-217	217	242	16	240	17	21	6.5	CU217K0	203.5
UPH-220C	220	245	12	243	13	16	6.5	CU2200K0	149.6
UPH-220	220	245	18	243	19	23	6.5	CU220K0	181.5
UPH-220B	220	250	18	248	19	23	6.5	CU220BK0	203.5
UPH-220A	220	250	22	248	24	28	6.5	CU220AK0	209
UPH-224	224	249	19	247	20	24	6.5	CU224AKO	170.5	CU2926D0	139.34
UPH-225A	225	250	18	248	19	23	6.5	CU225AK0	181.5	CU1625D0	139.34
UPH-225	225	250	19	248	20	24	6.5	CU1754D1	154	CU1626D0	125.6
UPH-230	230	255	18	253	19	23	6.5	CU3108KD	159.5
UPH-230A	230	260	19	258	20	24	6.5	CU306RKO	181.5
UPH-235	235	260	12	258	13	16	6.5	CU2350K0	187
UPH-235A	235	260	16	258	17	21	6.5	CU235AK0	220
UPH-236	236	261	19	259	20	24	6.5	CU2360KD	165	CU1649D1	151.16
UPH-240	240	265	18	263	19	23	6.5	CU2400KD	220

名羲璧	φd	φD	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 肇价 ¥
UPH-245B	245	265	15						374
UPH-245	245	270	16	268	17	21	6.5	CU316RK0	187
UPH-245A	245	285	38	283	1	1	6.5	CU245AKO	385
UPH-250	250	275	19	273	20	24	B	CU508RK0	176	CU16B3D1	153.1
UPH-250A	250	280	17	278	18	22	B	CU2501K0	198
UPH-2508	250	290	25.5	288			B	CU250BKD	335
UPH-250C	250	295	25	293	1	/	8	CU250CK0	335
UPH-255	255	280	19	278	20	24	8	CU2510K0	180	CU1694D0	178.68
UPH-256	256	280	11.7	278	12.7	15.7	B	CU256DKO	258	CU1714D0
UPH-260	260	285	19	283	20	24	B	CU2600K0	290
UPH-260A	260	290	18	288	19	23	B	CU260AK0	290
UPH-2608	260	305	27	303		1	8	CU260BK0	400
UPH-265A	265	290	16	288	17	21	8	CU2650K0	210
UPH-265	265	295	19	293	20	24	B	CUD321K0	180
UPH-265B	265	305	20						430
UPH-268A	268	282	7	280	7	11	B	CU268AKD	220
UPH-268	268	306	22	304	24	28	8	CU2680K0	420
UPH-270	270	300	18	298	19	23	8	CUD271K0	236	CU1722D0	213.96
UPH-270A	270	300	24	298	26	30	B	CU2702K0	398	CU1725D0	194.22
UPH-275	275	300	16	298	17	21	8	CU2750K0	220
UPH-275A	275	300	19	298	20	24	B	CU3190KO	242
UPH-2800	280	300	15	298	16	19	8	CU280DK0	350
UPH-280E	280	305	16	303	17	21	8	CU280EKO	350
UPH-280	280	310	19	30B	20	24	B	CU2810K0	248
UPH-280B	280	310	22	308	24	28	8	CU0280K0	385	CU2774DD	229.66
UPH-280C	280	312	24	310	26	30	8	CU280CK0	405	CU2166DD	239.36
UPH-280A	280	325	38	323	42		8	CU8018K0	495
UPH-280F	280	320	21	318	23	27	B	CU280FKO	355
UPH-283	283	308	13	306	14	17	8	CU2B30K0	330	CU1918D0
UPH-290	290	320	18	318	19	23	8	CU8029R0	250	CU1750DD	247.3
UPH-290A	290	320	22	318	24	28	B	CU290AKD	400	CU1752D0	247.3
UPH-290B	290	320	24	318	26	30	8	CU290BK0	430
UPH-300G	300	325	20	323	22	26	10	CU300GK0	390
UPH-300C	300	325	22	323	24	28	10	CU300CK0	355
UPH-300	300	330	19	328	20	24	B	CU6541K0	260
UPH-300A	300	332	24	330	26	30	8	CU4514K0	260	CU2351D0	292.44
UPH-300D	300	340	25	338	27	31	10	CU3157K0	320
UPH-300	300	340	26	338	2B	32	10	CU6358K0	340
UPH-300H	300	340	27	338	29	33	10	CU300HKO	420
UPH-300E	300	345	38	343			10	CU300EKD	590
UPH-300B	300	350	27	348	29	33	10	CU0320K0	320
UPH-300F	300	350	38	348		1	10	CU300FKO	590
UPH-304	304	340	26	338	28	32	10	CU3040K0	420
UPH-305B	305	345	38	343	42	1	10	CU305BK0	620
UPH-305A	305	350	27	348	29	33	10	CU3564K0	440
UPH-305	305	350	38	348	42		10	CU6230D8	550
UPH-310	310	340	18	338	20	24	10	CU8132K0	260	CU1772D0	470.66
UPH-310A	310	340	22	338	24	28	10	CU2704K0	380	CU1773D0	474.74
UPH-315B	315	340	19	338	21	25	10	cU315BKO	460
UPH-315A	315	345	22	343	24	28	10	CU315AKD	470

名义号	d	中D	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 罩价 ¥
UPH-315	315	347	24	345	26	30	10	CU315AK0	470	CU3064D0	478.9B
UPH-317	317	330	7.2	328	8	12	10	CU317AKO	460
UPH-320A	320	340	12	338	13	17	10	CU320AK0	390	CU2101D0	460.5
UPH-3200	320	345	15	343	16	20	10	CU320CKO	380
UPH-320B	320	350	15	348	16	20	10	CU320BK0	420
UPH-320	320	350	22	348	24	28	10	CU5843KD	420	CU1780D0	481
UPH-320D	320	360	28	358	30	34	10	CU320DKO	508
UPH-323	323	355	24	353	26	30	10	CU323AKO	455	CU178400	528.32
UPH-325	325	350	16	348	17	21	10	CU3250K0	355
UPH-330D	330	350	15						533
UPH-330A	330	355	16	353	17	21	10	CU330AKO	350	CU1786D0	511.86
UPH-330B	330	356	20	354	22	26	10	CU330BK0	365	CU1787D0
UPH-330C	330	360	20	358	22	26	10	CU330CK0	365
UPH-330	330	360	22	358	24	28	10	CU3554KD	400	CU1789D0	542.56
UPH-335	335	355	14	353	15	19	10	CU3350K0	370	CU1793D1	507.64
UPH-335A	335	367	24	365	26	30	10	CU335AKO	385	CU2197D0	579.68
UPH-340	340	370	22	368	24	28	10	CU3400K0	400	CU1795D0	591.9
UPH-341	341	365	13	339	14	18	10	CU365AK0	560
UPH-345	345	365	14	363	15	19	10	CU345AK0	385	CU2243D0
UPH-350D	350	370	10						597	CU2087D1
UPH-350A	350	370	14	368	15	19	10	CU350AKO	385	CU2302D0	567.32
UPH-350F	350	370	15						597
UPH-350	350	380	22	378	24	28	10	CU1821D0	400	CU1799D2	620.72
UPH-350B	350	390	22	388	24	28	10	CU350BK0	470
UPH-350C	350	400	25	398	27	31	10	CU350CKO	515
UPH-355	355	385	22	383	24	28	10	CU3550K0	440	CU1801D0	641.24
UPH-355A	355	387	24	385	26	30	10	CU355AK0	455	CU1916D0	647.52
UPH-355B	355	390	25	388	27	31	10	CU355BK0	465
UPH-360	360	390	22	388	24	28	10	CU3602KD	480	CU1803D0	653.62
UPH-360A	360	40D	32	398	34	39	10	CU360AK0	885
UPH-365	365	395	22	393	24	28	10	CU3650K0	510	CU1805D0	678.2
UPH-368	368	400	24	398	26	30	10	CU3680K0	520	CU1807D0	702.96
UPH-370B	370	400	15	398	16	20	10	CU370BK0	650
UPH-370	370	400	23	398	25	29	10	CU3700KD	515	CU1810D0	702.96
UPH-370A	370	40D	25	398	27	31	10	CU370AK0	550	CU181100	702.96
UPH-371	371	396	16	394	17	21	10	CU3710K0	550	CU2303D0
UPH-375	375	407	24	405	26	30	10	CU375AK0	560	CU3357D0	715.32
UPH-380	380	400	15	398	16	20	10	CU3800K0	560	CU1813D0	690.58
UPH-380A	380	410	15	408	16	20	10	CU380AK0	570	CU1815D0	715.32
UPH-380C	380	420	22	418	24	28	10	CU380CK0	765
UPH-380B	380	420	30	418	32	37	10	CU380BK0	650	CU2162D0	752.3
UPH-385	385	415	22	413	24	28	10	CU3850K0	750
UPH-390A	380	415	20						750
UPH-390	390	420	22	418	24	28	10	CU3900K0	580	CU1818D0	739.92
UPH-395	395	425	15						750
UPH-395A	395	425	18						580
UPH-395	395	425	22	423	24	28	10	CU3950K0	580	CU1819D0
UPH-400A	400	430	22	428	24	28	10	CU3153D2	500	CU1823D0	789.26
UPH-400B	400	430	25	428	27	31	10	CU400BK0	550	CU2007D0	789.26
UPH-400C	400	432	24	430	26	30	10	CU400CKO	580	CU3358D0	801.64

名义号	中d	中D	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 单价 ¥
UPH-400	40D	440	24	438	26	30	10	CU2862D3	550
UPH-420	420	455	25	453	27	32	10	CU4200K0	650	CU1833D0	826.22
UPH-425	425	457	24	455	26	31	10	CU4250K0	680	CU1917D0	838.58
UPH-430	430	460	22	458	24	28	10	CU4300K0	680
UPH-430A	430	470	20	468	22	27	10	CU430AKO	710	CU1837D0	863.18
UPH-435A	435	465	24	463	26	31	10	CU435AK0	730
UPH-435	435	470	25	468	27	32	10	CU4350K0	730	CU1841D0	875.56
UPH-440	440	480	35	478	37	42	10	CU4400KD	950	CU1843D0	912.52
UPH-445	445	470	18	468	19	24	10	CU4450K0	900	CU224400
UPH-445A	445	485	18	483	19	24	10	CU445AKO	930
UPH-450B	450	475	20						950
UPH-450	450	480	22	478	24	29	10	CU4500K0	950	CU1844D0	875.56
UPH-450A	450	482	24	480	26	31	10	CU450AKO	990	CU335900	912.52
UPH-460	460	500	20	498	22	27	10	CU4600K0	1100	CU1850D0	949.48
UPH-475A	475	495	15						1250
UPH-475	475	507	24	505	26	31	10	CU4750K0	1250	CU1853D0	974.24
UPH-480	480	505	18	503	19	24	10	CU4800K0	1250	CU2245D0
UPH-480A	480	520	24	518	26	31	10	CU48DAKO	1550
UPH-490	490	530	25	528	27	32	10	CU4900K0	1550	CU1855D0	1109.86
UPH-518	518	568	50	564	1	/	10	CU5180K0	3000
UPH-520	520	550	17	548	18	23	10	CU5200K0	1350	CU2189D0	1150.9
UPH-525	525	555	15	553	16	21	10	CU5250KD	1550	CU186000
UPH-530	530	570	20	568	22	27	10	CU5300K0	1700	CU2084D0	1233.12
UPH-540	540	560	14	558	15	20	10	CU5400K0	1650	CU2037D0
UPH-540A	540	580	24	578	26	31	10	CU540AKO	2300
UPH-545	545	580	24	578	26	31	10	CU5450K0	2300
UPH-550	550	585	24						2670
UPH-570	570	600	17	598	18	23	10	CU5700KD	1700	CU2190D0	1356.38
UPH-600	600	630	20	628	22	27	10	CU6000K0	1850	CU2160D0	1479.82
UPH-600A	600	630	2B	628	30	35	10	CU600AKO	1950	CU203600
UPH-600B	600	640	30	638	32	37	10	CU600BKO	2150	CU1868D0	1541.38
UPH-610	610	670	48	668			10	CU6100K0	4000
UPH-640	640	685	25	683	27	32	12	CU6400K0	2350	CU2284D0
UPH-665	665	715	50	713	1		12	CU6650K0	4400
UPH-670	670	700	22	698	24	29	12	CU6700K0	2500
UPH-690	690	720	22						2823
UPH-700	700	730	15	728	16	21	12	CU7000KD	2150	CU1873D0
UPH-700A	700	740	24	738	26	31	12	CU700AKO	2750
UPH-760	760	800	34	798	36	41	12	CU7600K0	2750	CU1877D0
UPH-768	768	800	30	798	32	37	12	CU7680K0	2750	CU1878D0
UPH-800	800	850	40						11765
UPH-818	818	850	24	848	26	31	12	CU8180K0	2900	CU1882D1
UPH-825	825	850	15.5	848	16.5	21.5	12	CU8250K0	2750	CU1883D0
UPH-825A	825	860	27	858	29	34	12	CU825AKO	3000	CU2124D0
UPH-840	840	868	23	866	25	30	12	CU8400K0	3000
UPH-925	925	950	14	948	15	20	12	CU9250K0	2850	CU232500
UPH-950	950	980	20	978	22	27	12	CU9500KD	2950	CU1892D0
UPH-1020	1020	1050	18	1048	19	24	12	CU102BK0	3150	CU1894D0
UPH-1025	1025	1055	15	1053	16	21	12	CU102BK0	3150	CU1895D0
UPH-1100	1100	1140	20	1138	22	27	12	CU110BK0	3450	CU2192D0

名义号	φd	中D	h	φD1	HA	HB	C	KVK零件号	KVK 单价 ¥	NOK零件号	NOK 单价 ¥
UPH-1220	1220	1280	30	1278	32	37	12			CU1899D0
UPH-1560	1560	1500	20	1598	22	27	12			CU2191D0
UPH-1620	1620	1680	30	167B	32	37	12			CU1904D0

UPH-9.75（英寸）	247.65×287.65×35	93/4x20x35	385
UPH-10"（英寸）	254×280x12.7	10°x13x12.7	335
UPH-10”（英寸）	254x288x35.8	10'x17x35.8	390
UPH-10”（英寸）	254x292x38	10°x19x38	390
UPH-12"（英寸）	304.8x340.8x26	12°x18x26	420
UPH-12"（英寸）	304.Bx346.8x38	12*x21×3B	620
UPH-12”（英寸）	304.Bx350.8x3B	12'x23x38	650
UPH=12”（英寸）	304.Bx350.8x39	12'x23×39	650
UPH-12.25”（英寸）	311.15×342.9×16	12.25x15.875x16	430
UPH-14”（英寸）	355.6×407.6x41	14*x2Bx41	885
UPH-20”（英寸）	508×558.8x49	20*x25.4x49	3000
UPH-32”（英寸）	812.Bx863.4x41	32*x25.4x41	14706
UPH-36“（英寸）	914.4x965.2x41	36'x25.4x41	17648

苏州嘉弘升工业设备有限公司

产品简介

规格参数

产品详情

获取专业解决方案
